ArbiterPUF

Arbiter PUF Framework: RTL, Evaluation, and Security Analysis

A compact RTL and Python framework for simulating Arbiter PUF variants, extracting CRPs, measuring core PUF metrics, and benchmarking simple modeling attacks.

Features

Basic Arbiter PUF RTL in rtl/arbiter_puf.sv
XOR Arbiter PUF wrapper in rtl/xor_arbiter_puf.sv
Multi-bit Arbiter PUF wrapper in rtl/multi_bit_arbiter_puf.sv
Self-checking multi-PUF testbench in sim/tb_arbiter_puf.sv
Assertion bundle in sim/puf_assert.sv
Metrics suite: uniformity, uniqueness, reliability, bit aliasing, avalanche
Modeling attack benchmark with logistic regression
Figure generation for README images and metric dashboards
GitHub Actions CI with RTL lint, simulation, metrics, and attack checks

Architecture

An Arbiter PUF sends a challenge-controlled race through a chain of mux stages. The final race outcome is sampled by an arbiter latch. In this repository, SEED-driven mux bias is used to model repeatable simulation variation; that is useful for verification, but it is still a deterministic simulation model, not physical silicon randomness.

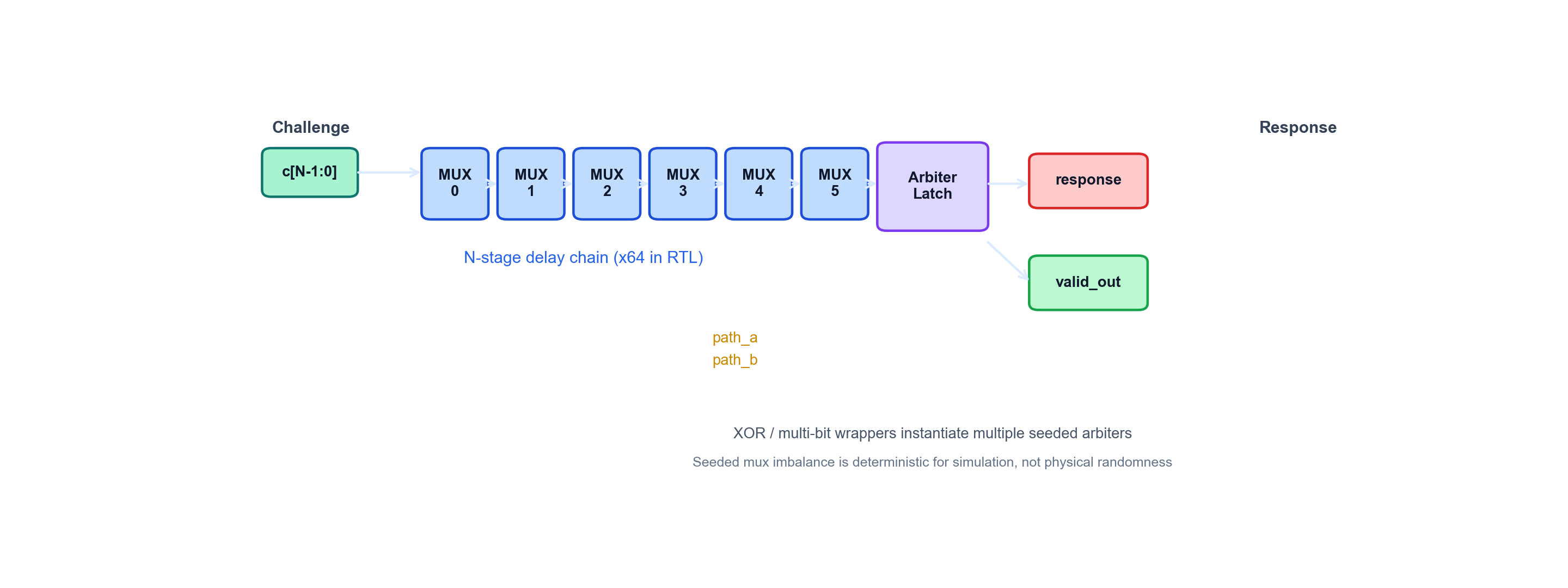

Arbiter PUF architecture

RTL Modules

`arbiter_puf`

Port	Direction	Description
`clk`	input	Clock
`rst_n`	input	Active-low reset
`valid_in`	input	Input strobe
`challenge[N-1:0]`	input	Challenge vector
`response`	output	1-bit response
`valid_out`	output	Response valid strobe

Parameter	Default	Description
`N`	`64`	Number of stages
`SEED`	`64'h9E3779B97F4A7C15`	Deterministic stage-bias seed

`xor_arbiter_puf`

Port	Direction	Description
`clk`	input	Clock
`rst_n`	input	Active-low reset
`valid_in`	input	Input strobe
`challenge[N-1:0]`	input	Shared challenge vector
`response`	output	XOR of K internal Arbiter responses
`valid_out`	output	Response valid strobe

Parameter	Default	Description
`N`	`64`	Number of stages per Arbiter
`K`	`4`	Number of parallel arbiters
`SEED_BASE`	`64'h9E3779B97F4A7C15`	Base seed for internal instances

`multi_bit_arbiter_puf`

Port	Direction	Description
`clk`	input	Clock
`rst_n`	input	Active-low reset
`valid_in`	input	Input strobe
`challenge[N-1:0]`	input	Shared challenge vector
`response[M-1:0]`	output	Multi-bit response vector
`valid_out`	output	Response valid strobe

Parameter	Default	Description
`N`	`64`	Number of stages per Arbiter
`M`	`64`	Number of response bits
`SEED_BASE`	`64'hD1B5_4A32_9F3C_6E21`	Base seed for bit lanes

Instantiation Examples

arbiter_puf #(
    .N(64),
    .SEED(64'h0123_4567_89AB_CDEF)
) u_basic (
    .clk(clk),
    .rst_n(rst_n),
    .valid_in(valid_in),
    .challenge(challenge),
    .response(response),
    .valid_out(valid_out)
);

xor_arbiter_puf #(
    .N(64),
    .K(4),
    .SEED_BASE(64'hA5A5_5A5A_0123_4567)
) u_xor (
    .clk(clk),
    .rst_n(rst_n),
    .valid_in(valid_in),
    .challenge(challenge),
    .response(response),
    .valid_out(valid_out)
);

multi_bit_arbiter_puf #(
    .N(64),
    .M(64),
    .SEED_BASE(64'h0F0F_F0F0_1357_9BDF)
) u_multi (
    .clk(clk),
    .rst_n(rst_n),
    .valid_in(valid_in),
    .challenge(challenge),
    .response(response),
    .valid_out(valid_out)
);

Simulation

The main testbench exercises all three RTL modules, emits CRPs to sim/crp_data.csv, injects response noise for reliability measurement, and prints a PASS/FAIL summary.

Run it with Icarus Verilog:

make -f scripts/Makefile sim

That command compiles:

rtl/arbiter_puf.sv
rtl/mux_stage.sv
rtl/xor_arbiter_puf.sv
rtl/multi_bit_arbiter_puf.sv
sim/puf_assert.sv
sim/tb_arbiter_puf.sv

Analysis

Run the full metrics suite on the generated CSV:

python scripts/analyze_puf.py --input sim/crp_data.csv --output-dir sim/analysis

Outputs:

sim/analysis/metrics.json
sim/analysis/metrics.txt
sim/analysis/metrics_dashboard.png
sim/analysis/metrics_dashboard.pdf

Metrics covered:

Uniformity: percentage of ones in the response stream
Uniqueness: inter-chip Hamming distance
Reliability: identical-response rate under injected noise
Bit aliasing: per-bit bias across multi-bit responses
Avalanche: response distance after one-bit challenge flips

Modeling Attack

Benchmark a simple logistic-regression attacker against the basic and XOR PUFs:

python scripts/ml_attack.py --input sim/crp_data.csv --output-dir sim/attack

Outputs:

sim/attack/ml_attack.json
sim/attack/ml_attack.txt

The expected trend is that the basic Arbiter PUF is easier to model than the XOR variant.

Figures

Generate the README figures:

python scripts/generate_puf_figures.py --output-dir docs

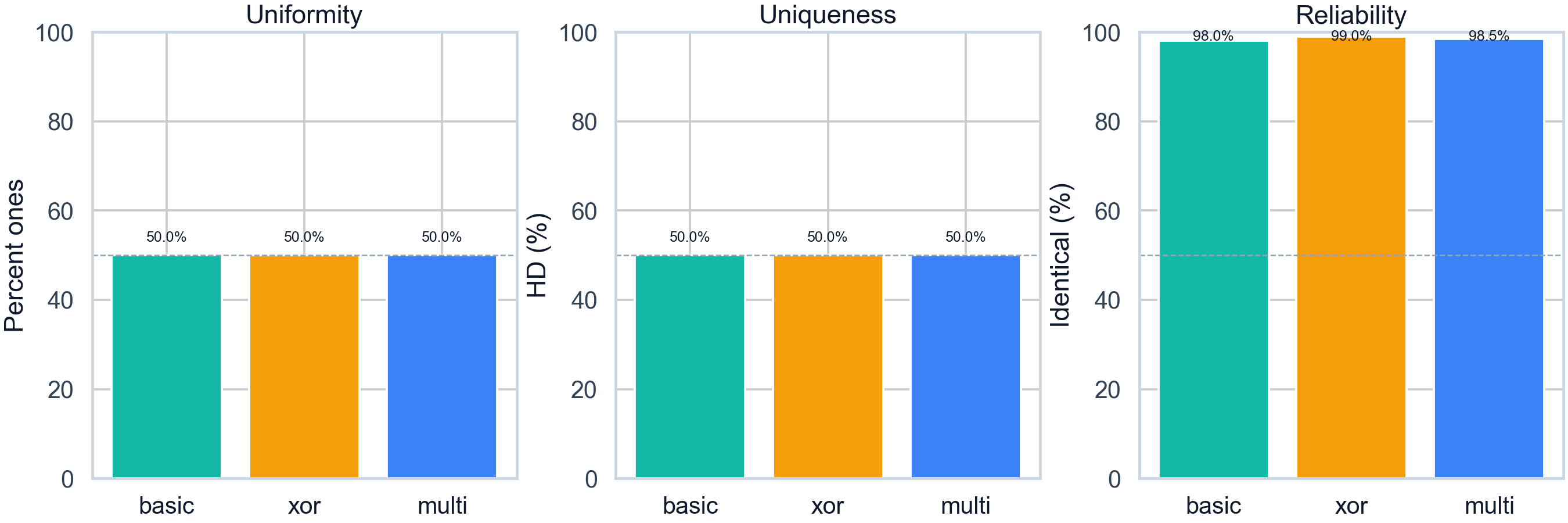

Metric dashboard

The dashboard should land near these targets:

Uniformity: about 50%
Uniqueness: about 50%
Reliability: near 100%
Avalanche: near 50% response distance for one-bit challenge changes

Security Notes

The base RTL uses deterministic seed-driven path bias for repeatable simulation.
That is useful for verification, but it is not a physical PUF measurement model.
XOR Arbiter PUFs increase modeling resistance by combining multiple internal responses.
Multi-bit wrappers enable key-generation workflows, but each bit lane still needs an independent evaluation of bias and stability.
The included attack script is intentionally simple; it is enough to show the basic Arbiter PUF is easier to model than the XOR wrapper.

CI

GitHub Actions runs:

Icarus simulation for all PUF variants
Python metrics generation
Modeling attack benchmark
Verilator lint on RTL and assertion files
Artifact upload for generated figures and reports

Quick Start

git clone https://github.com/a0ax/ArbiterPUF.git
cd ArbiterPUF
make -f scripts/Makefile sim
python scripts/analyze_puf.py --input sim/crp_data.csv --output-dir sim/analysis
python scripts/ml_attack.py --input sim/crp_data.csv --output-dir sim/attack
python scripts/generate_puf_figures.py --output-dir docs

Repository Layout

rtl/ - synthesizable SystemVerilog modules
sim/ - testbench and assertion logic
scripts/ - analysis, figures, and attack tooling
models/ - behavioral Python model for fast prototyping
docs/ - generated figures for the README
